The M-CK0620BC model is a high-precision, high-speed, and highly automated precision turning and milling composite machining machine designed for small precision and complex parts. It is equipped with Taiwan's original gear power shaft and can perform high-precision and efficient side milling, side drilling, side tapping, and other composite processing。
Scope of application：
High difficulty and precision one-time processing of various precision and complex parts such as optoelectronic accessories, medical accessories, mobile phone accessories, military accessories, clock accessories, and headgear。
Mechanical specifications and parameters：
| machine range | Maximum machining diameter | Φ20mm |
| Maximum processing length | 150mm | |
| main shaft | spindle bore | Φ21mm |
| Spindle Port Form | Collet type | |
| Maximum spindle speed | Max.4500转/min | |
| trip | X-axis | 350mm |
| Z-axis | 300mm | |
| Y-axis | 130mm | |
| Quick movement | X-axis | 24m/min |
| Z-axis | 24m/min | |
| Y-axis | 15m/min | |
| electrical machinery | Main motor power | 3KW |
| Feed axis (X/Z) motor | 0.75KW | |
| Power shaft motor | 0.85KW | |
| 一般规格 | External dimensions (length * width * height) | 1700mm*1400mm*1690mm(Excluding warning lights） |
| Machine weight | 1200kg |
annex：
| Standard accessory | Optional Accessories | |
| 1. Cooling equipment | 1套 | 1. Automatic feeder |
| 2. Automatic lubrication device | 1套 | 2.Clamps and various fixtures |
| 3. Pneumatic clamping opening and closing device | 1套 | 3.Blowing device |
| 4. Warning lights | 1套 | 4. Various types of tool holders, drilling tool holders |
| 5. Lighting device | 1套 | 5. Automated robotic arm device |
| 6. Knife base plate | 1件 | |
| 7. tool carrier | 4件 | |
| 8. Drilling tool holder | 3件 | |
| 9. Spindle spring collet | 1个 | |
| 10.Random tools | 1套 |

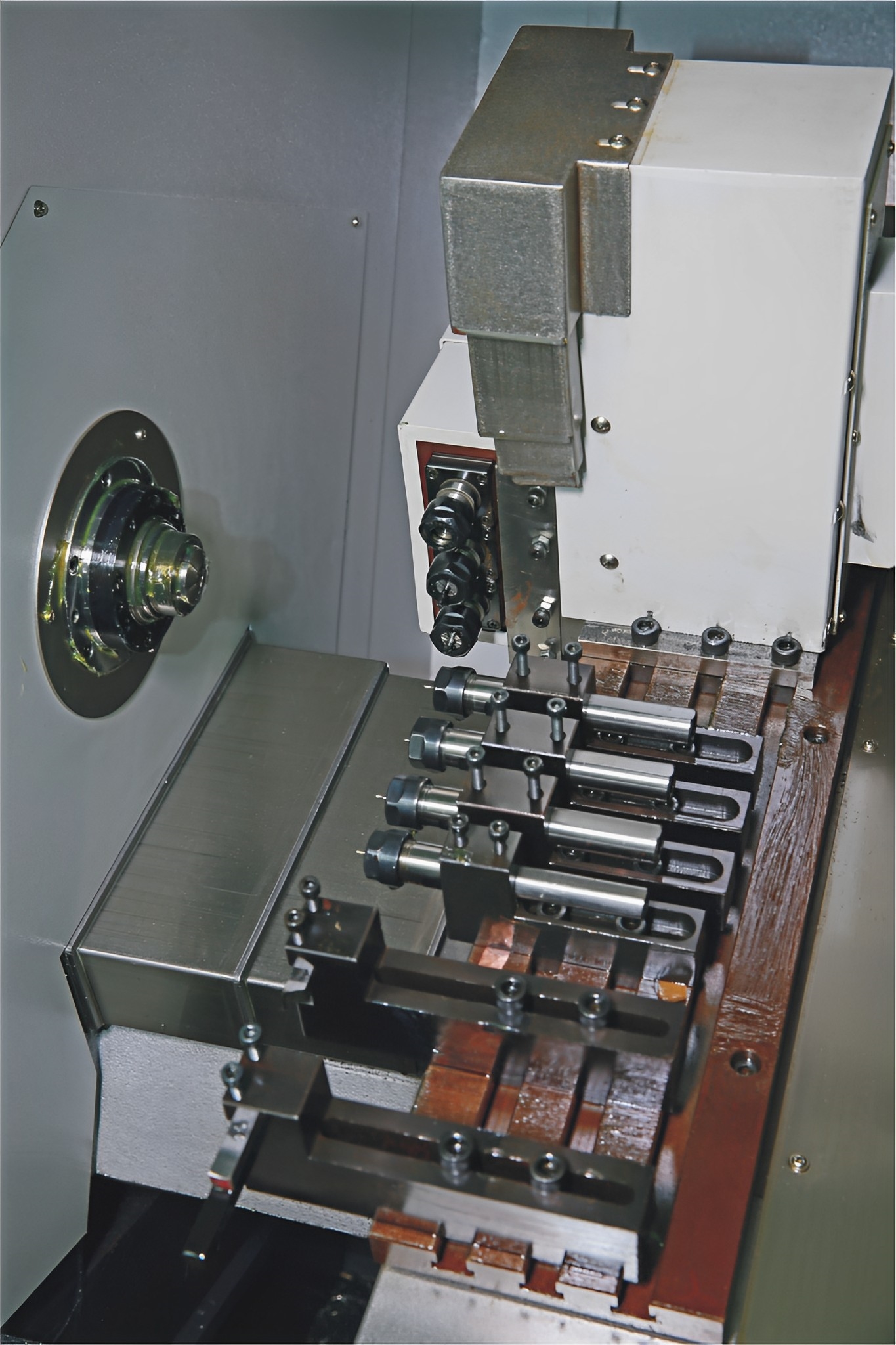

Product image：
