The MC-46Y and 52Y power turret turning and milling composite CNC lathe is equipped with a 15 station servo power turret, programmable tailstock, and can perform high-precision and high-efficiency turning and milling composite precision machining of long axis and disc parts。
Scope of application：
Automated processing of precision electronic parts, medical parts, automotive parts, military parts, and various precision parts。
Mechanical specifications and parameters：
| mechanical parameters | MC-46Y | MC-52Y | |
| machine range | swing over bed | Φ460 | Φ460 |
| Maximum processing length | 350mm | 350mm | |
| main shaft | Spindle end form | A2-5 | A2-6 |
| spindle bore | Φ56 | Φ66 | |
| Maximum diameter of bar material passing through | Φ45 | Φ51 | |
| speed | Maximum spindle speed | Max.4000转/min | Max.4000转/min |
| trip | x-axis | 430mm | 430mm |
| Z-axis | 400mm | 400mm | |
| y-axis | 60mm | 60mm | |
| Quick movement | X/Z axis | 24m/min | 24m/min |
| y-axis | 24m/min | 24m/min | |
| electrical machinery | Main motor power | 5.5KW | 7.5KW |
| Feed axis (X/Z) motor | 2.4KW | 2.4KW | |
| Y-axis servo motor | 1.7KW | 1.7KW | |
| tailstock | Quill diameter | Φ65 | Φ80 |
| Sleeve stroke | 80mm | 80mm | |
| General specifications | External dimensions (length * width * height) | 2500mm*1750mm*2050mm | 2500mm*1750mm*2050mm |
| Machine weight | 4000KG | 4000KG | |
annex：
| Near standard | Optional Accessories | |
| 1. Cooling equipment | 1套 | 1. Clamps and various fixtures |
| 2. Automatic lubrication device | 1套 | 2.Oil pressure automatic feeder |
| 3. Pneumatic clamping opening and closing device | 1套 | 3.Various types of tool holders, drilling tool holders |
| 4. Warning lights | 1套 | 4.Hydraulic chuck and hard claw |
| 5. Lighting device | 1套 | |
| 6. Spindle spring collet | 1个 | |
| 7.Random tools | 1套 |

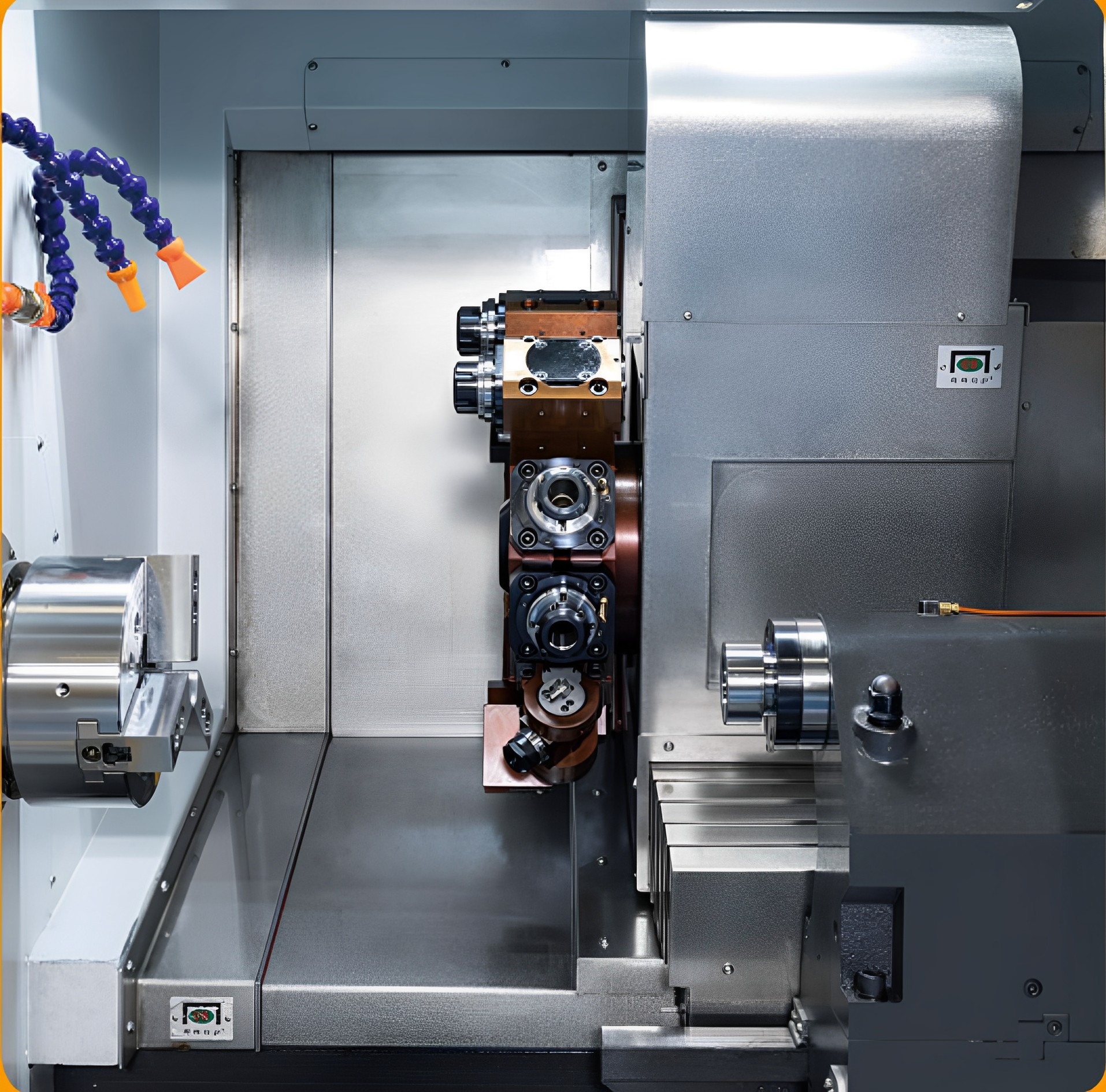

Product image：
Model: Power turret 46Y
