MC-46D and 52D turret series CNC lathes, equipped with 12 station servo turrets, programmable tailstock, capable of high-precision and high-efficiency precision machining of long axis and disc parts。
Scope of application：
Precision electronic parts, medical parts, automotive parts, mobile phone parts, optoelectronic parts, military parts, various precision parts。
Mechanical specifications and parameters：
| mechanical parameters | MC-46D | MC-52D | |
| machine range | swing over bed | Φ460 | Φ500 |
| Maximum processing length | 350mm | 500mm | |
| main shaft | Spindle end form | A2-5 | A2-6 |
| spindle bore | Φ56 | Φ66 | |
| Maximum diameter of bar material passing through | Φ44 | Φ52 | |
| speed | Maximum spindle speed | Max.4000转/min | Max.4000转/min |
| speed | x-axis | 210mm | 250mm |
| Z-axis | 400mm | 600mm | |
| Quick movement | x-axis | 24m/min | 24m/min |
| Z-axis | 24m/min | 24m/min | |
| electrical machinery | Main motor power | 5.5KW | 7.5KW |
| Feed axis (X/Z) motor | 1.3KW | 1.3KW | |
| tailstock | Maximum stroke of tailstock | 300mm | 450mm |
| Quill diameter | Φ65 | Φ80 | |
| Sleeve stroke | 80mm | 80mm | |
| General specifications | External dimensions (length * width * height) | 2100mm*1560mm*1850mm | 2450mm*1560mm*1850mm |
| Machine weight | 3000KG | 4000KG | |
annex：
| Standard accessory | Optional Accessories | |
| 1. Cooling equipment | 1套 | 1. Clamps and various fixtures |
| 2. Automatic lubrication device | 1套 | 2.Oil pressure automatic feeder |
| 3. Pneumatic clamping opening and closing device | 1套 | 3.Various types of tool holders, drilling tool holders |
| 4. Warning lights | 1套 | 4. Hydraulic chuck and hard claw |
| 5. Lighting device | 1套 | |
| 6. Spindle spring collet | 1个 | |
| 7.Random tools | 1套 |

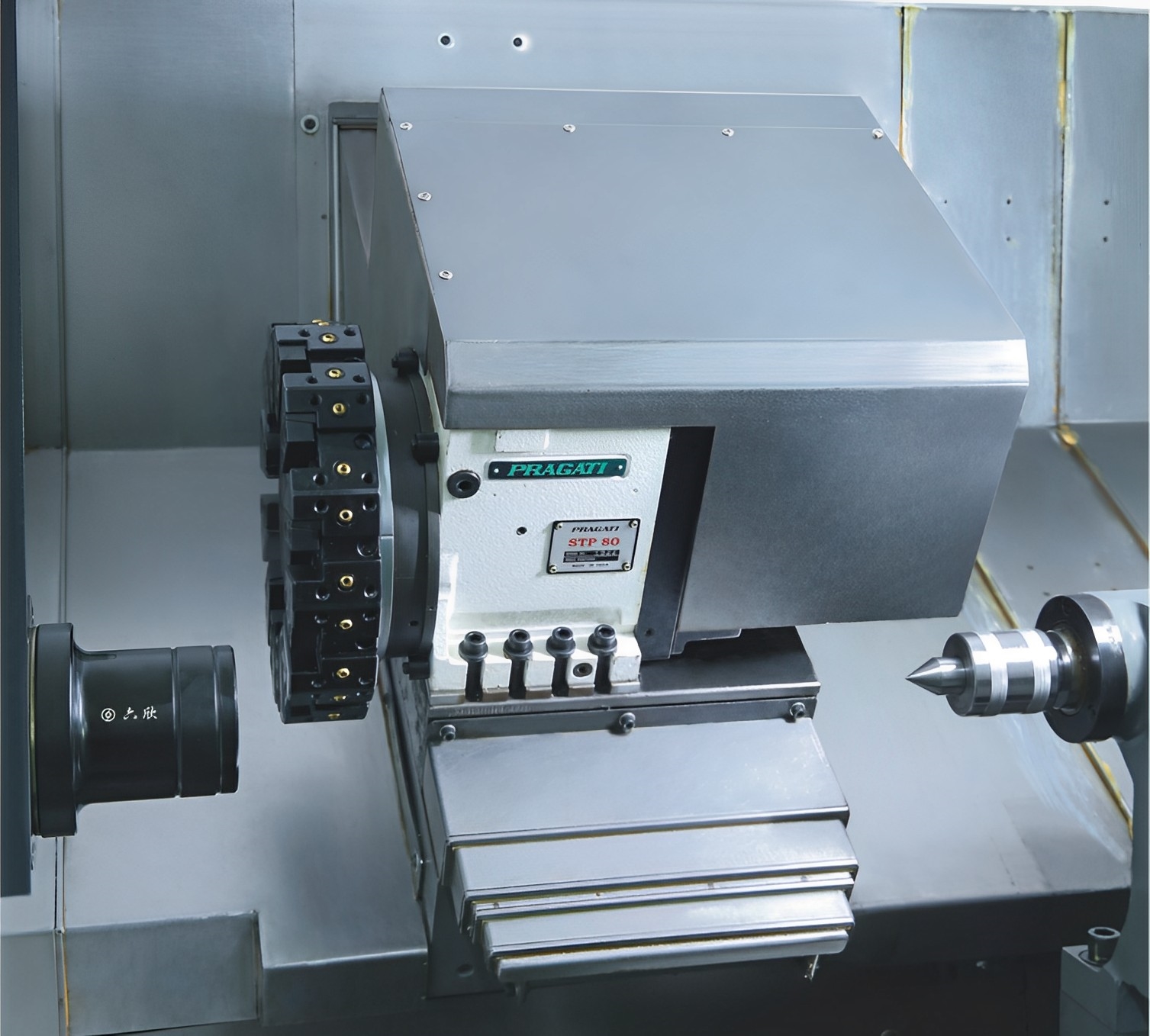

Product image：
