M-CK0620BI CNC machine tool is a high-end automated CNC lathe independently developed and designed by Kimura Company. It is equipped with a high-speed automatic loading and unloading manipulator and an automatic storage tray device, which can achieve automated precision parts processing and unmanned processing, thereby improving production efficiency。
Scope of application：
Electronic accessories, medical accessories, automotive accessories, mobile phone accessories, optoelectronic accessories, military accessories, watches and other precision parts。
Mechanical specifications and parameters：
| machine range | Maximum machining diameter | Φ20mm |
| Maximum processing length | 150mm | |
| main shaft | spindle bore | Φ21mm |
| Spindle Port Form | Collet type | |
| Maximum spindle speed | Max.4500转/min | |
| trip | x-axis | 350mm |
| Z-axis | 300mm | |
| Fast moving speed | x-axis | 24m/min |
| Z-axis | 24m/min | |
| electrical machinery | Main motor power | 3KW |
| Feed axis (X/Z) motor | 0.85KW | |
| manipulator | A-axis motor | 0.5KW |
| B-axis motor | 0.5KW | |
| Y-axis motor | 0.75KW | |
| General specifications | External dimensions (length * width * height) | 1750mm*1430mm*1700mm(Excluding warning lights） |
| Machine weight | 1200kg |
annex：
| Standard accessory | Optional Accessories | |
| 1. Cooling equipment | 1套 | 1.Clamps and various fixtures |
| 2. Automatic lubrication device | 1套 | 2.Blowing device |
| 3. Pneumatic clamping opening and closing device | 1套 | 3. Various types of tool holders, drilling tool holders |
| 4. Warning lights | 1套 | |
| 5. Lighting device | 1套 | |
| 6. Knife base plate | 1件 | |
| 7. tool carrier | 4件 | |
| 8. Drilling tool holder | 3件 | |
| 9. Spindle spring collet | 1个 | |
| 10.Random tools | 1套 |

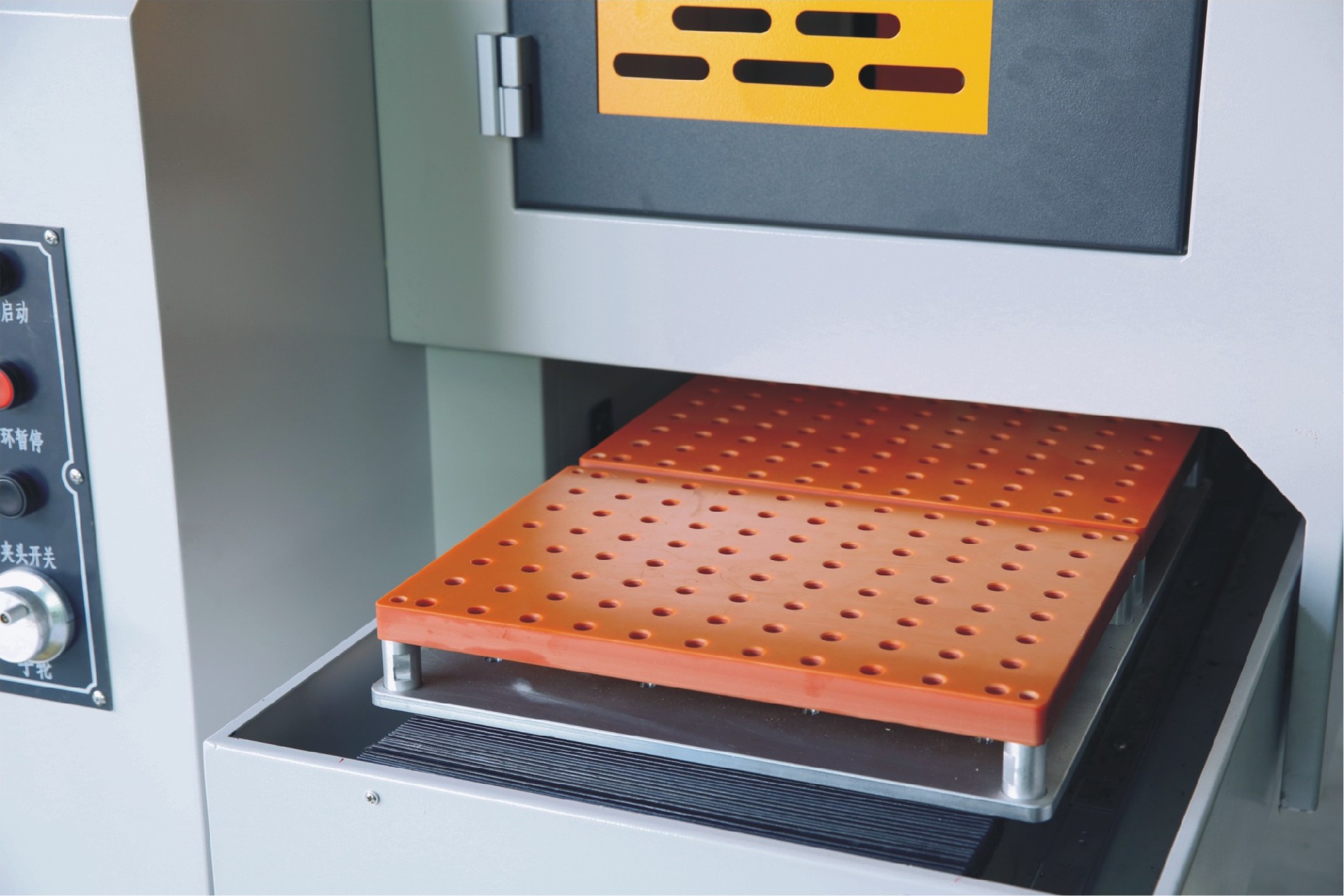

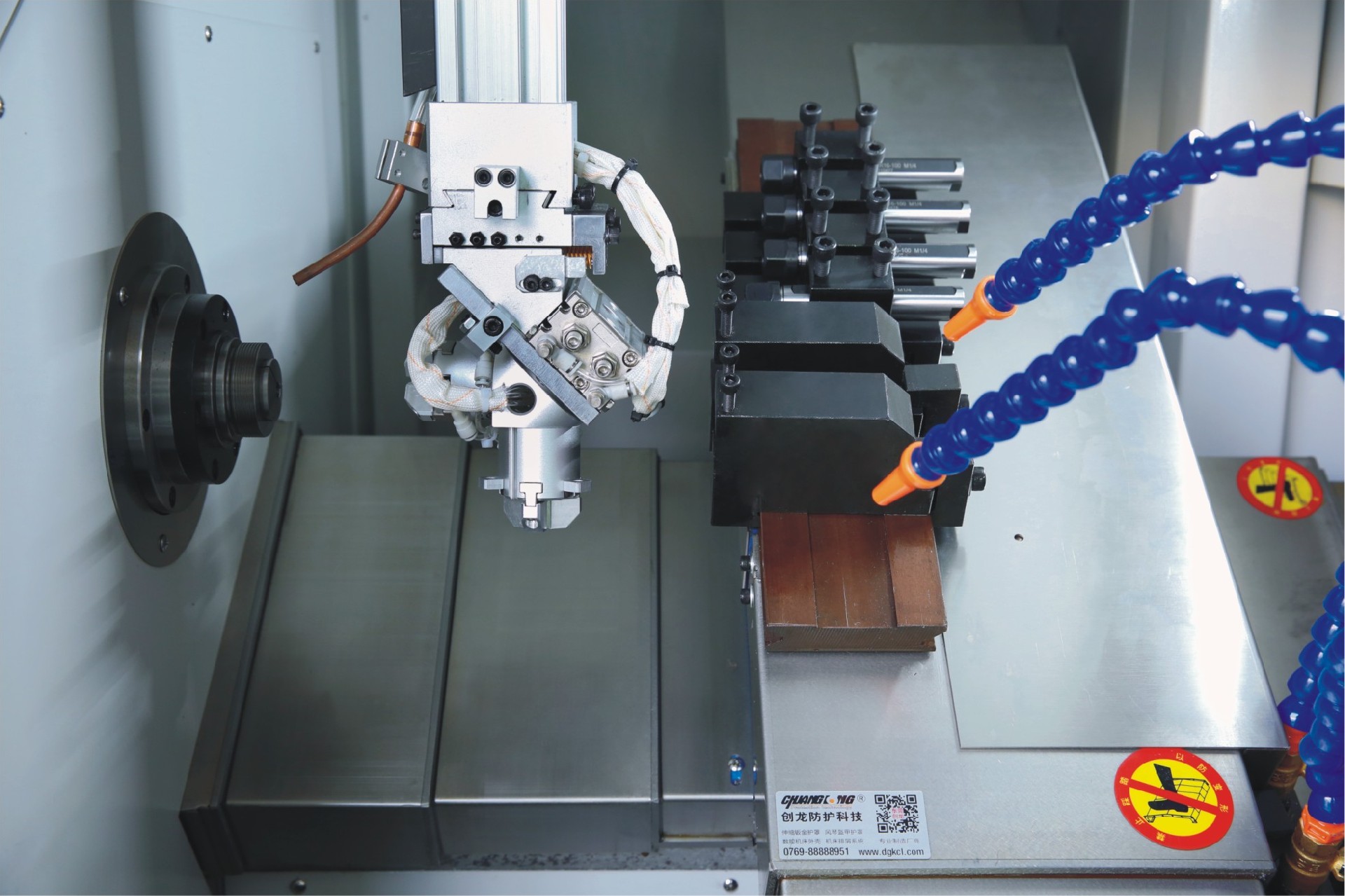

Product image：
