The M-CK0620BA model is a widely trusted and highly praised economic CNC lathe with a cutting tool arrangement. This machine adopts a high-strength cast iron bed and an inclined bed, with a rigorous structure, convenient chip removal, simple and fast operation, and is an ideal choice for processing small precision parts。
Scope of application：
Batch processing and large-scale fully automated processing of various small precision parts such as electronics, healthcare, automobiles, plastics, watches, jewelry, etc。
Mechanical specifications and parameters：
| machine range | Maximum machining diameter | Φ20mm |
| Maximum processing length | 150mm | |
| main shaft | spindle bore | Φ21mm |
| Spindle end form | 夹头式 | |
| Maximum spindle speed | Max.5000转/min | |
| trip | x-axis | 350mm |
| Z-axis | 300mm | |
| Fast moving speed | Z-axis | 24m/min |
| Z轴 | 24m/min | |
| electrical machinery | Main motor power | 2.2/3.7KW |
| Feed axis (X/Z) motor | 1.2KW | |
| General specifications | External dimensions (length * width * height) | 1700mm*1400mm*1690mm(Excluding warning lights） |
| Machine weight | 1200kg |
annex：
| Standard accessory | Optional Accessories | |
| 1. Cooling equipment | 1套 | 1. Automatic feeder |
| 2. Automatic lubrication device | 1套 | 2.Clamps and various fixtures |
| 3. Pneumatic clamping opening and closing device | 1套 | 3.Various types of tool holders, drilling tool holders |
| 4. Warning lights | 1套 | 4. Automated robotic arm device |
| 5. Lighting device | 1套 | |
| 6. Knife base plate | 1件 | |
| 7. tool carrier | 4件 | |
| 8. Drilling tool holder | 3件 | |
| 9. Spindle spring collet | 1个 | |
| 10.Random tools | 1套 |

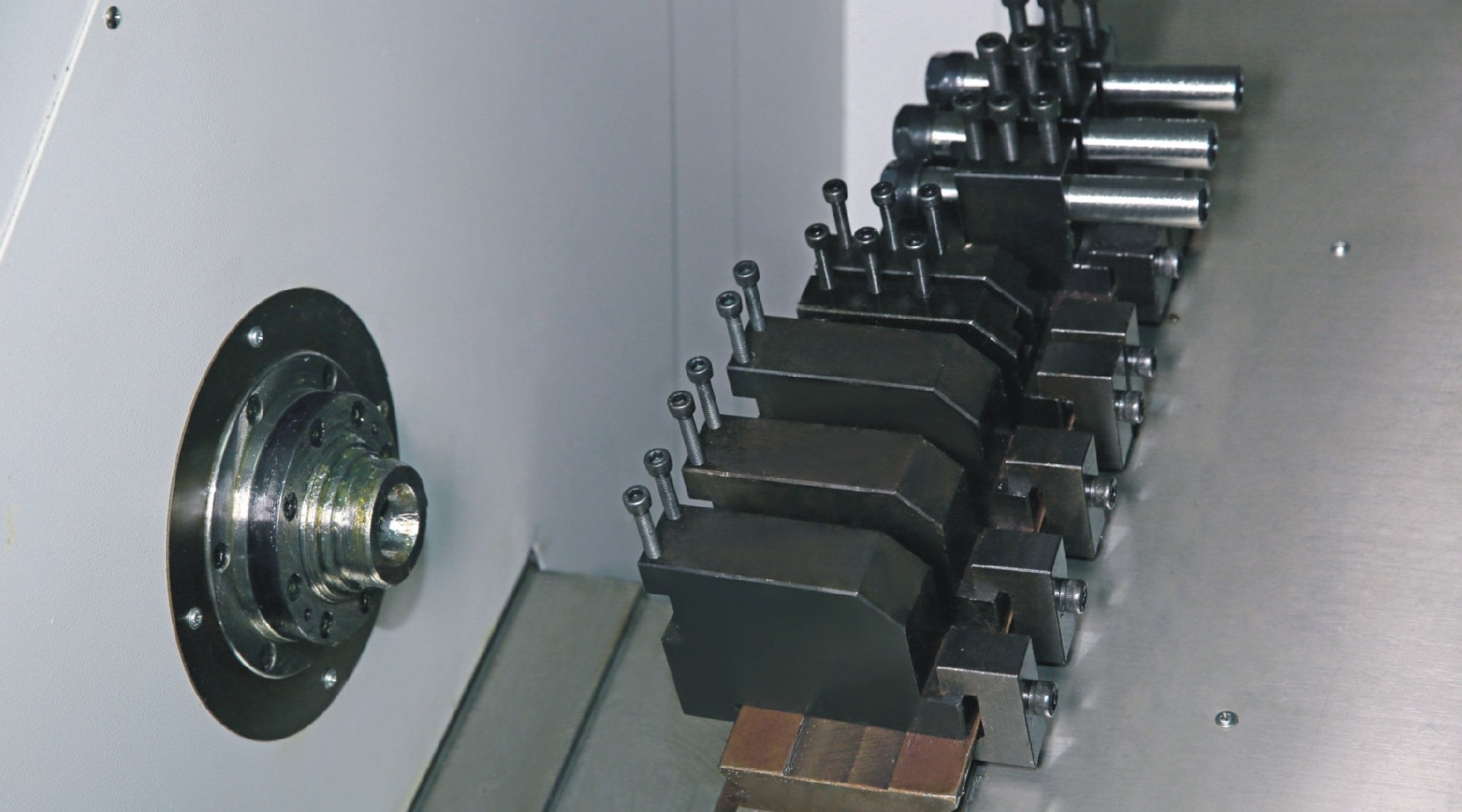

Product image：
