The M-CK0645B/M-CK0652B CNC lathe with blade arrangement series is a high-precision and high-performance CNC lathe designed for small and medium-sized precision parts. The bed and base are made of high-strength cast iron, making the machine more rigid. It is an ideal choice for processing small and medium-sized precision parts。
Scope of application：
Automated processing of precision electronic parts, medical parts, automotive parts, mobile phone parts, optoelectronic parts, military parts, and various precision parts。
Mechanical specifications and parameters：
| model | M-CK0645B | M-CK0652B | |
| machine range | Maximum machining diameter | Φ44mm | Φ52mm |
| Maximum processing length | Φ150mm | Φ150mm | |
| main shaft | spindle bore | Φ56mm | 66 |
| Spindle end form | A2-5 | A2-6 | |
| Maximum spindle speed | Max.4500转/min | Max.4000转/min | |
| trip | x-axis | 760mm | 760mm |
| Z-axis | 270mm | 270mm | |
| Fast moving speed | x-axis | 24m/min | 24m/min |
| Z-axis | 24m/min | 24m/min | |
| electrical machinery | Main motor power | 5.5KW | 5.5KW |
| Feed axis (X/Z) motor | 1.3KW | 1.3KW | |
| General specifications | External dimensions (length * width * height) | 2100mm*1560mm*1850mm | 2100mm*1560mm*1850mm |
| Machine weight | 2100kg | 2200kg |
annex：
| Standard accessory | Optional attachments | |
| 1. Cooling equipment | 1套 | 1. Clamps and various fixtures |
| 2. Automatic lubrication device | 1套 | 2.Oil pressure automatic feeder |
| 3. Pneumatic clamping opening and closing device | 1套 | 3.Various types of tool holders, drilling tool holders |
| 4. Warning lights | 1套 | 4. Hydraulic chuck and hard claw |
| 5.Lighting device | 1套 | |
| 6. Knife base plate | 1件 | |
| 7. tool carrier | 4件 | |
| 8. Drilling tool holder | 3件 | |
| 9. Spindle spring collet | 1个 | |
| 10.Random tools | 1套 |

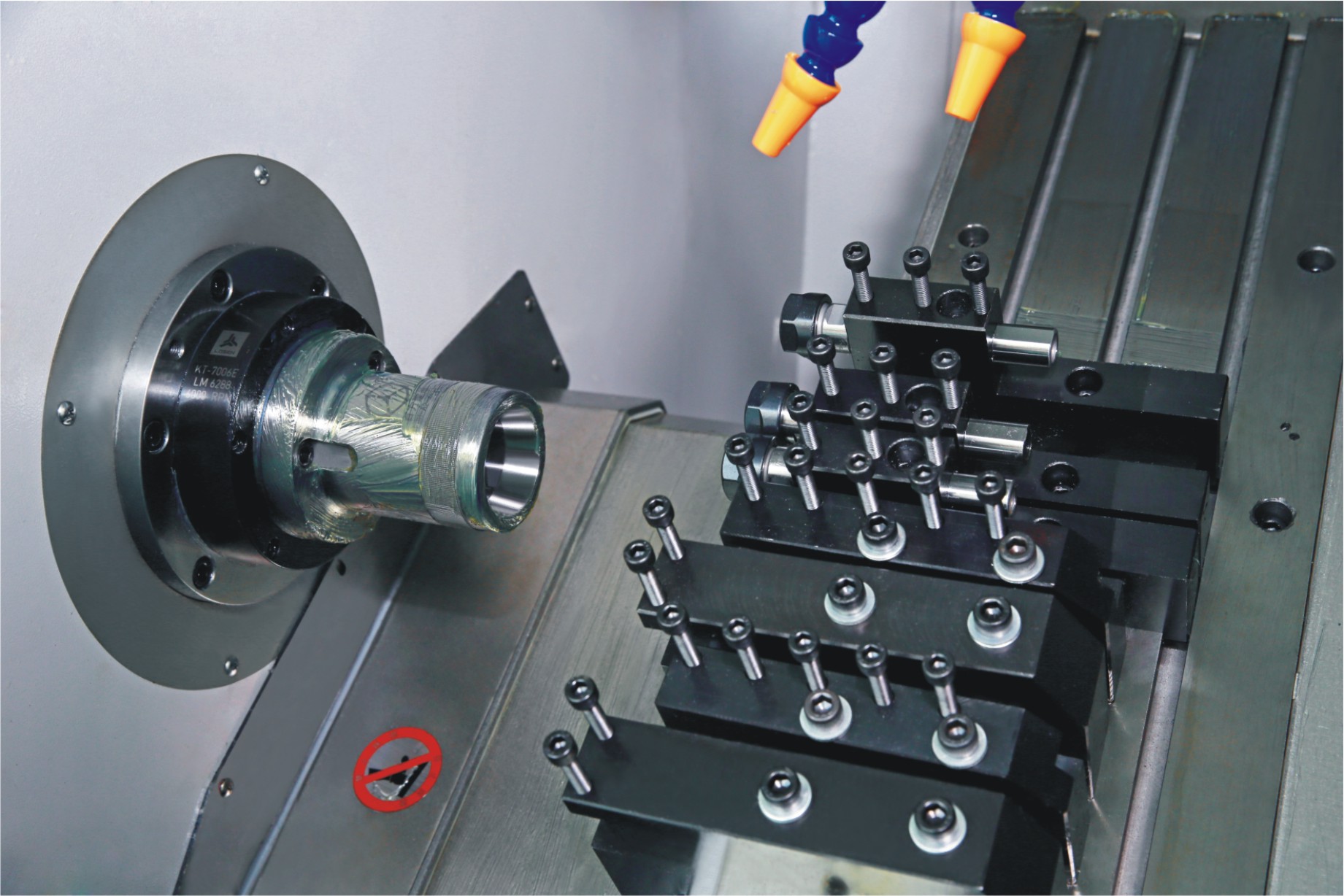

Product image：
