The MC-46T and 52T turret series CNC lathes are high-performance precision CNC lathes designed for small and medium-sized precision parts. Equipped with a 12 station servo turret, they can perform high-precision and high-efficiency precision machining of disc and short shaft parts。
Scope of application：
Precision electronic parts, medical parts, automotive parts, mobile phone parts, optoelectronic parts, military parts, various precision parts。
Mechanical specifications and parameters：
| mechanical parameters | MC-46T | MC-52T | |
| machine range | swing over bed | Φ450 | Φ450 |
| Maximum machining diameter of disc type | 350mm | 350mm | |
| Maximum processing length | 300mm | 300mm | |
| main shaft | Spindle end form | A2-5 | A2-6 |
| spindle bore | Φ56 | Φ66 | |
| Maximum diameter of bar material passing through | Φ44 | Φ52 | |
| speed | Maximum spindle speed | Max.4000转/min | Max.4000转/min |
| trip | x-axis | 250mm | 250mm |
| Z-axis | 400mm | 600mm | |
| Quick movement | x-axis | 24m/min | 24m/min |
| Z-axis | 24m/min | 24m/min | |
| accuracy | X-axis repeated positioning | ±0.003mm | ±0.003mm |
| Z-axis repeated positioning | ±0.003mm | ±0.003mm | |
| electrical machinery | Main motor power | 5.5KW | 7.5KW |
| Feed axis (X/Z) motor | 1.8KW | 2.4KW | |
| General specifications | External dimensions (length * width * height) | 2350mm*1560mm*1850mm | 2450mm*1560mm*1850mm |
| Machine weight | 3000KG | 4000KG | |
annex：
| Near standard | Optional Accessories | |
| 1. Cooling equipment | 1套 | 1. Clamps and various fixtures |
| 2. Automatic lubrication device | 1套 | 2.Oil pressure automatic feeder |
| 3. Pneumatic clamping opening and closing device | 1套 | 3.Various types of tool holders, drilling tool holders |
| 4. Warning lights | 1套 | 4. Hydraulic chuck and hard claw |
| 5. Lighting device | 1套 | |
| 6. Spindle spring collet | 1个 | |
| 7.Random tools | 1套 |

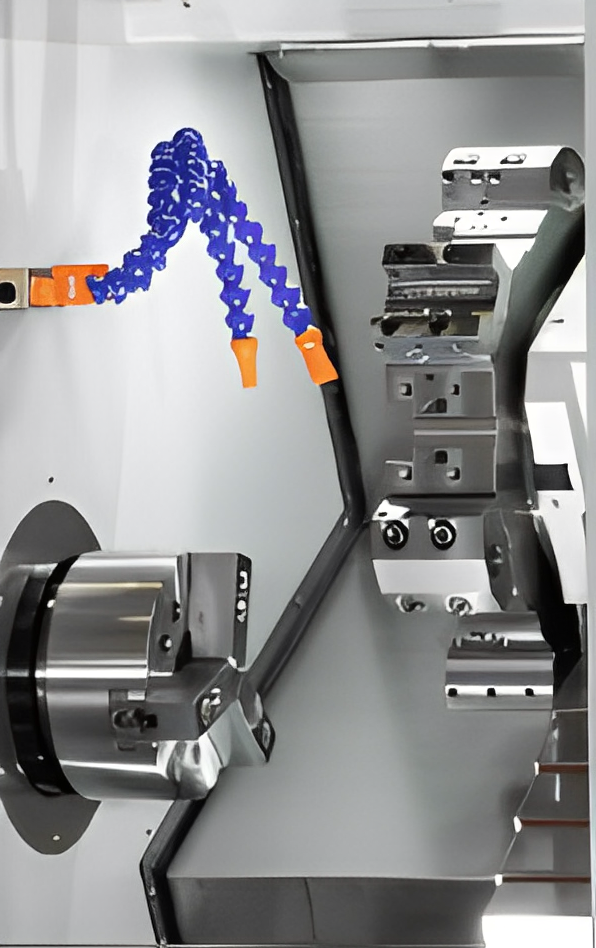

Product image：
